Aluminium roll jacketing for pipe isnulation is a protective outer covering for insulation systems like pipes, vessels, and equipment. Due to its anti-corrosive properties, aluminum cut and roll jacketing protects the underlying pipe and insulation from damage and corrosion under insulation (CUI). If you are interested in this, please contact us.
Advantage：
- Superior Protection:Its corrosion resistance ensures long-term protection, preventing degradation of the insulation material and maintaining optimal thermal efficiency.
- Thermal Reflectivity:Aluminum possesses excellent thermal reflectivity, meaning it reflects radiant heat away from the pipe surface. This property helps in reducing heat transfer through the insulation system, improving energy efficiency, and lowering operational costs.
- Mechanical Strength: It can withstand physical impacts, abrasions, and vibrations, thereby extending the lifespan of the insulation system.
- Ease of Installation:Aluminum jacketing is lightweight and flexible, making it easy to handle and install.
- Sustainability:Aluminum is a highly sustainable material as it is 100% recyclable without losing its inherent properties.
Application：
- Oil and gas pipelines, refineries
- Oil&gas pipe/tank
- Oil refinery
Surface Finish:

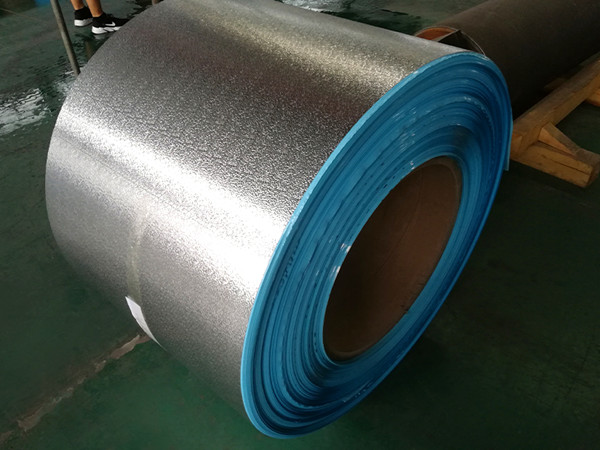

We has two surface finishes available smooth or stucco embossed to laminate the moisture barrier.
Specification：
- Total Thickness:3mm-1.5mm
- Width:550mm-1220mm(emphasize 914mm、1000mm、1219mm)
- Length:Available on order
- Film: Blue film about 80 micron. Polykraft about 120 micron
- Alloy:3003/3105/5005/6061/6082
- Temper: H14/H16/H24 Special tempers are available upon special request.
Classification：

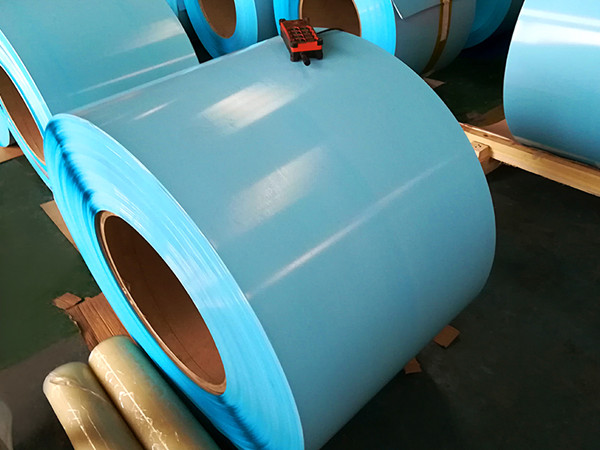

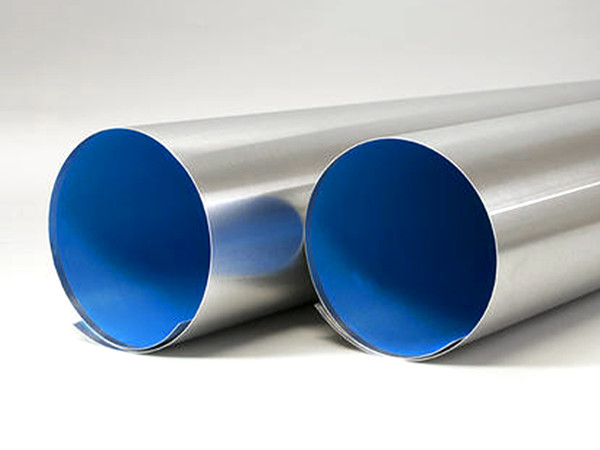

- Aluminium Polysurlyn Moisture Barrier. The inside of the aluminum is coated with a PSMB retarder that provides an excellent resistance to moisture and has excellent abrasion protection during installation. The Aluminium Jacketing is cut and rolled to fit each size of pipe insulation correctly.
- Aluminum Polykraft Moisture Barrier. Aluminum Jacketing with polykraft moisture barrier has different tyeps from wrought aluminum alloy 1060, 3003 or 5005 according to ASTM B209 with H14 and H16 temper. The properties of these aluminum alloys provide the required strength to resist in-service abuse, but can be easily fabricated and installed.
Packing:
Export standard packing or according to customers’ requirement.

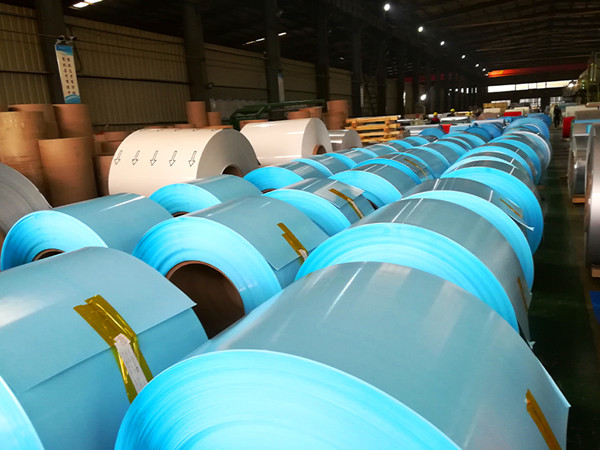

Aluminium Jacketing factory:
Henan Worthwill Industry Co., Ltd is the international sales company of Henan Jurun New Materia Co., ltd Our Factory is located in the Industrial Park of Huiguo Town, Gongyi, Zhengzhou, China, which is nearby Gongyi Nan High Speed Railway Station and G310 State Road with a convenient transportation.
Our main products are aluminum color coating sheet/coil, curtain wall panel, wooden grain and marble coated products. We are the only one who can produce thickness 5.0mm and width 1800mm roller coated products in our province.
Aluminium Jacketing export in many country:
MID East(7.00%), Central America(7.00%), South Asia(6.00%), North America(5.00%), Southeast Asia(5.00%), Western Europe(4.00%), Eastern Asia(3.00%), South America(3.00%), Oceania(2.00%), Africa(2.00%), Southern Europe(2.00%), Eastern Europe(2.00%), Northern Europe(2.00%). There are total about 201-300 people in our office.
Our Serves:
- Provide free samples for your reference
- Reply to your message within 12 hours
- Professionals answer your questions
- Passionate business team
- Perfect after-sales service system
Why choose us ?
Aluminum jacketing for pipe insulation offers a myriad of benefits, including superior protection, thermal reflectivity, mechanical strength, ease of installation, aesthetic appeal, and sustainability. Investing in high-quality aluminum jacketing ensures the longevity and efficiency of insulation systems, leading to cost savings and improved performance. As industries worldwide strive for energy efficiency and sustainability, aluminum jacketing proves to be a reliable choice.
If you are interested in our products, please let me know,and i will try my best to help you choices the needed product!
